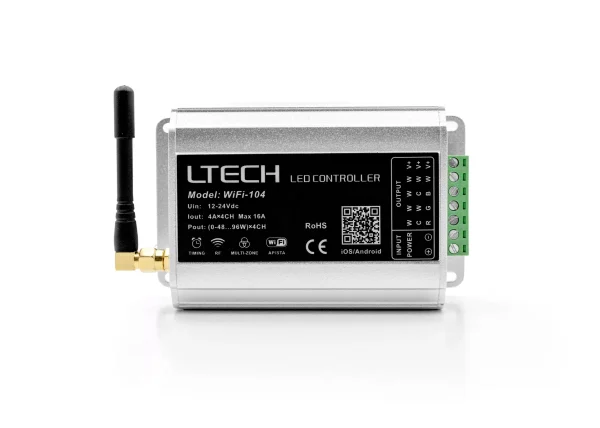

A photo of the LED Controller Wifi-104 A WIFI controlled controller of LED light strip

WiFi-PLA104 Wi-Fi Controller

Diffusion LED Controller

Diffusion WiFi-PLA104 is a Wi-Fi controller that enables users to control up to 12 different zones from any Android or iOS device.

Features

  • Connect multiple WiFi controllers through a wireless router to increase the number of zones able to be controlled at once
  • Direct connect or expand coverage using a wireless router
  • Free App
  • Require electronic drivers only
Technical Specification
Downloads
Dimensions

Technical Specification

Dimensions 6333674 cm
Com. Standard

2.4Ghz WiFi, 802.11 b/g/n protocol
Power Input

24V DC
Max Current Load

4A x 4CH Max 16A
Control Distance Max

100 m
Compatible with

R4-5A Receiver

Downloads

Specification Sheet
WiFi-PLA104 Wi-Fi Controller Spec Sheet
Installation Sheet
Wi-Fi 104 Installation Sheet

Dimensions

Controller
5.0 in L x 2.87 in W x 1.75 in H
127.6 mm L x 73 mm W x 44.5 mm H
