SLC-402S

Diffusion LED Channel

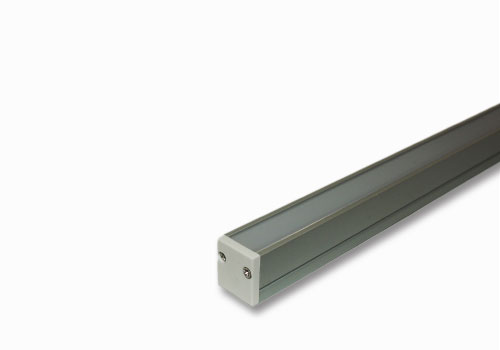

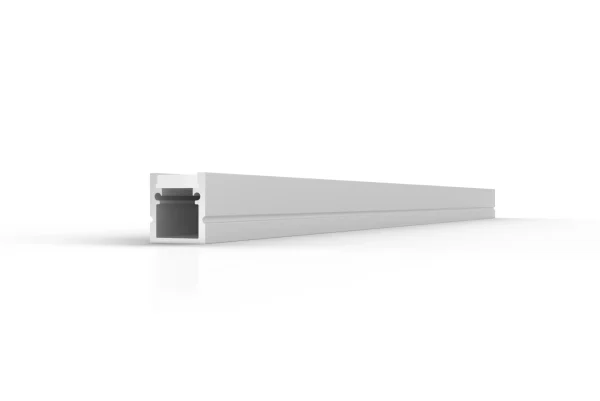

Diffusion SLC-402S is a Narrow, anodized aluminum LED extrusion that comes complete with three mounting hardware, two endcaps, and an extra thick opal polycarbonate lens for zero dotting.
Note: Extra clips and endcaps are available by request

In Stock at Central Warehouse

Applications

  • Platforms
  • Shelving
  • Niches
  • Stairs
  • Furniture

Technical Specification

Channel

Anodized Aluminum Extrusion

Lens

Opal Polycarbonate, Heat Resistant, UV stable, and Shatter Resistant

Length

8 ft (2.44 meters)

Color

Silver (Standard), Black, White, Custom RAL, Optional Antimicrobial Coating

Mounting Clip Material

Aluminum

Environment

Indoor and Outdoor

Warranty

5 Year Warranty

Downloads

Specification Sheet
Installation Sheet
CAD File

Diagrams

SLC-402S Diagram
A diagram of the Diffusion Lighting LED Channel SLC-402S
End Cap Diagram
A diagram of the Diffusion Lighting LED Channel SLC-402S End Cap
Mounting Clips Diagram
A diagram of the Diffusion Lighting LED Channel SLC-402S Mounting Clips

Dimensions

SLC-402S Dimensions
Width: 14.5 mm (0.57 in)
Height: 15.6 mm (0.61 in)
Interior : 11 mm (0.43 in)

Accessories

SLC-402S Wattage Calculator
