SL6-Outdoor

Diffusion LED Strip

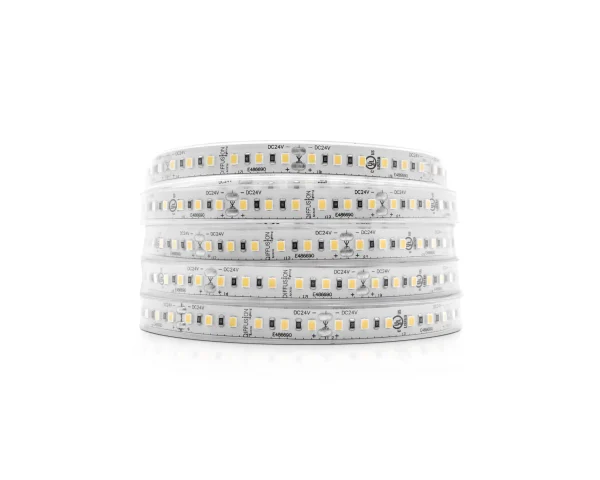

Diffusion SL6-Outdoor is a flexible 12 mm wide linear LED strip. It is available in 16′ and 32′ rolls that can be cut every 6 LEDs (50 mm or 2").

16 FT ROLL

32 FT ROLL

Custom Cut

In Stock at Central Warehouse

Features

50K HRS
Lamp Life
24V DC
Power Input
91+ CRI
LED CRI
14.4 W/m
LED Watts
2700K
1220 lm/m
366 lm/ft
3000K
1282 lm/m
384 lm/ft
3400K
1344 lm/m
402 lm/ft
4100K
1400 lm/m
420 lm/ft
Custom Kelvins available upon request
Technical Specification
Downloads
Diagrams
Tools

Technical Specification

Dimensions 6333674 cm
Wattage

14.4 W/m (4.5W/ft)

Voltage

24 Volts DC

Roll Length

16 ft, 32 ft, Custom Cut

IP Rating

IP 67

Dimmable

Yes

Lamp Life

50,000 hrs LM-80

Cutting Point

2 in

CRI

91 + CRI

Operating Temp

-40°C to 120°C

Warranty

5 Year Warranty

Downloads

Specification Sheet
Installation Sheet

Diagrams

LED Ribbon Diagram

Recommended Channels

The following are recommended LED Channels for SL6-Outdoor Diffusion LED Ribbon.
