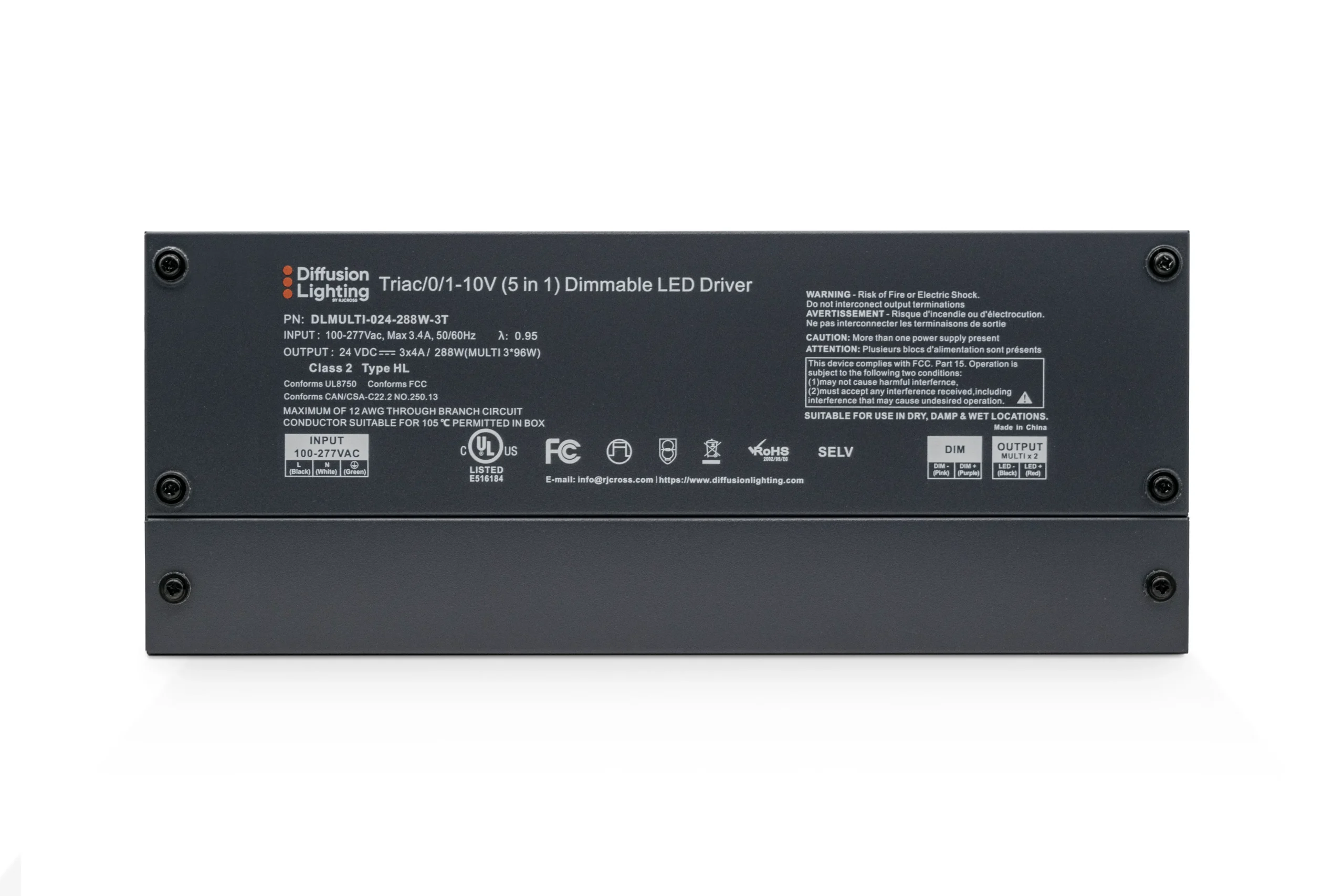

DLMULTI-024-288W-3T

Diffusion LED Driver

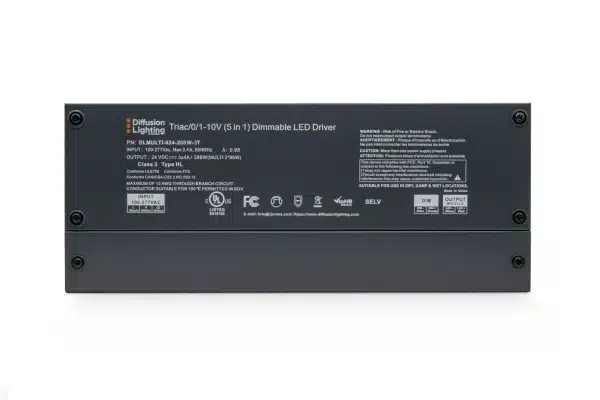

Diffusion DLMULTI-024-288W-3T is a three tap Dimmable LED Driver that works with  Forward / Reverse phase, ELV, Triac, or 0-10V Dimmers.

Features

  • Protection from short circuits, over-current, and over-voltage
  • Internal self-reset mini breakers
  • Compatible with virtually every style dimmer
  • Flicker-free: 20,000 Hz
  • Indoor/Outdoor
  • High Efficiency
  • Working Temp: -40° C to +85° C
  • Wet location rated
Technical Specification
Downloads
Diagrams
Dimensions

Technical Specification

Input Voltage

100-277 VAC

Output Voltage

24V DC

Output Current

2x 4.0 A

Dimmable

Yes

Dimming Range

0-100%

Wattage

288W (3X 96W)

Class

Class 2

Environment

Indoor and Outdoor

IP Rating

IP 65

Operating Temp

-40°C to 185°C

Diagrams

LED Driver
Connector Diagram

Dimensions

Driver
11.2 in L x 4.3 in W x 1.7 in H
285 mm L x 110 mm W x 45 mm H
Knock outs
0.8 in L x in W x in H
2 mm L x mm W x mm H
