Diffusion LED driver for Forward/Reverse phase, ELV, Triac, or 0-10V dimmers.

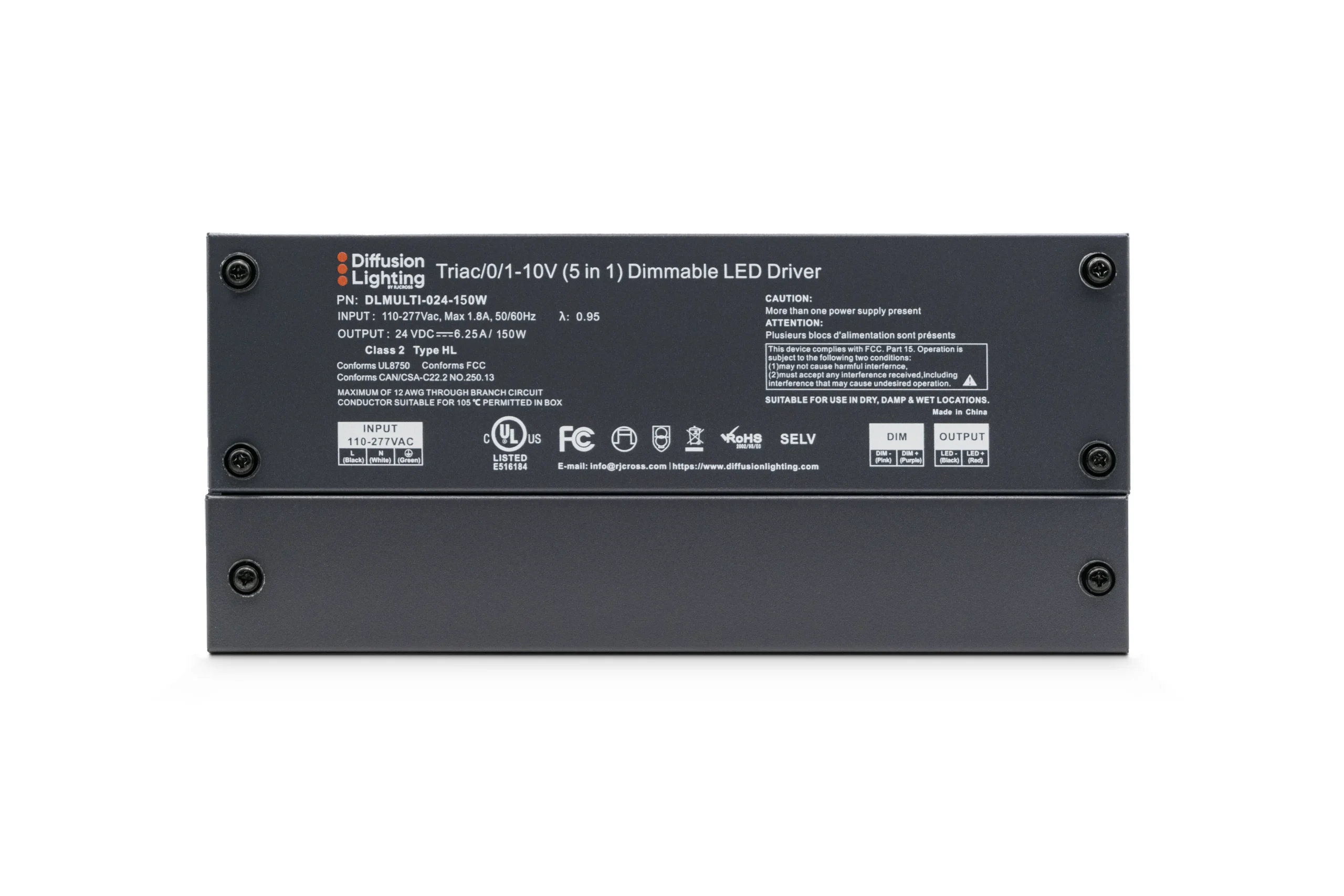

DLMULTI-024-150W

Diffusion Driver

Diffusion DLMULTI-024-150W is a Dimmable LED Driver that works with  Forward / Reverse phase, ELV, Triac, or 0-10V Dimmers.

Features

  • Protection from short circuits, over-current, and over-voltage
  • Internal self-reset mini breakers
  • Compatible with virtually every style dimmer
  • Flicker-free: 20,000 Hz
  • Indoor/Outdoor
  • High Efficiency
  • Working Temp: -40°C to 80°C
  • Wet location rated
Downloads
Dimensions

Technical Specification

Dimensions 6333674 cm
Wattage

150W
Output Current

6.25 A
Input Voltage

100-277 VAC
Output Voltage

24V DC
Dimmable

Yes
Dimming Range

0-100%
Environment

Indoor and Outdoor
IP Rating

NEMA 4X
Operating Temp

-40°C to 80°C
Certificate

cUL Listed | E486690
Warranty

5 Year Warranty

Downloads

Specification Sheet
DLMULTI-024-150W Spec Sheet
Installation Sheet
DLMULTI Installation Sheet

Diagrams

Dimensions

DLMULTI-024-150W Dimensions
Length: 260 mm (10.24 in)
Width: 100 mm (3.94 in)
Height: 45 mm (1.75 in)
Knock outs Dimensions
Sides:
6 x 0.85 in (21 mm)
Back:
2 x 0.85 in (21 mm)
Standard 1/2" connectors won't fit
