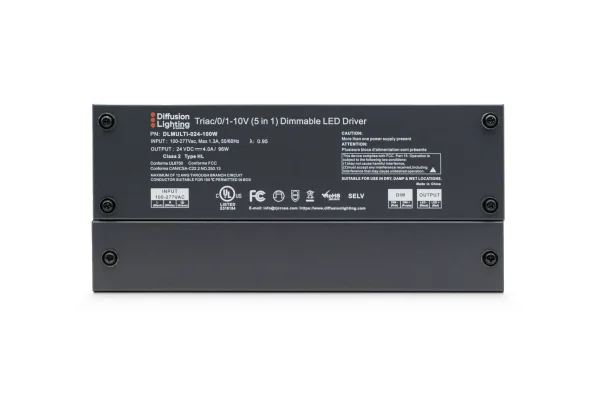

The Diffusion DLMULTI-024-100W is a Dimmable LED Driver that works with Forward / Reverse phase, ELV, Triac, or 0-10V Dimmers.
The Diffusion DLMULTI-024-100W is a Dimmable LED Driver that works with Forward / Reverse phase, ELV, Triac, or 0-10V Dimmers.
Dimensions | 6333674 cm |
---|---|
Wattage | 100W |
Output Current | 4.16 A |
Output Voltage | 24V DC |
Input Voltage | 100-277 VAC |
Dimmable | Yes |
Dimming Range | 0-100% |
Environment | Indoor and Outdoor |
IP Rating | NEMA 4X |
Operating Temp | -40°C to 80°C |
Certificate | cUL Listed | E486690 |
Warranty | 5 Year Warranty |
