Diffusion LED Strip

SL4 - Indoor

Diffusion LED Strip

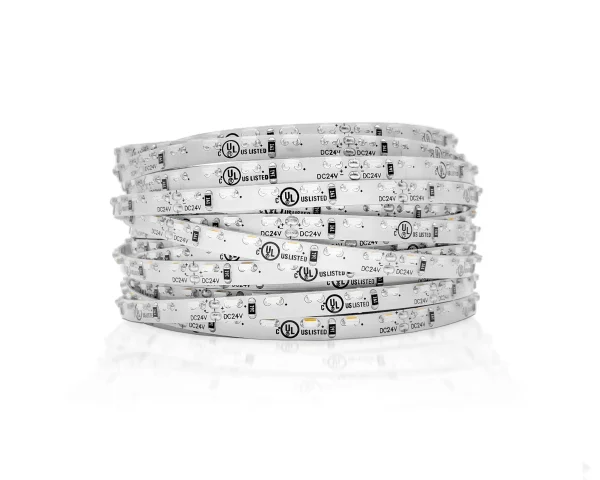

Diffusion SL4-Indoor is a flexible 5mm wide side mount linear LED strip. It is available for a custom cut that can be cut every 6 LEDs (50mm or 2")

Custom Cut Only

In Stock at Central Warehouse

Features

50K HRS
Lamp Life
24V DC
Power Input
91+ CRI
LED CRI
10 W/m
LED Watts
3000K
728  lm/m
222  lm/ft
4000K
812  lm/m
247  lm/ft
Custom Kelvins available upon request
Technical Specification
Downloads
Diagrams
Tools

Technical Specification

Wattage

10 W/m (3 W/ft)
Voltage

24 Volts DC
Roll Length

Custom Cut
Dimmable

Yes
Lamp Life

50,000 hrs LM-80
LED/Meter

60/m (18/ft)
Cutting Point

2 in
CRI

91 + CRI
Adhesive

3M Double Coated
Operating Temp

-40°C to 120°C
Warranty

5 Year Warranty

Downloads

Specification Sheet
SL4-Indoor Spec Sheet
Installation Sheet
Indoor LED Installation Sheet

Diagrams

LED Ribbon Diagram

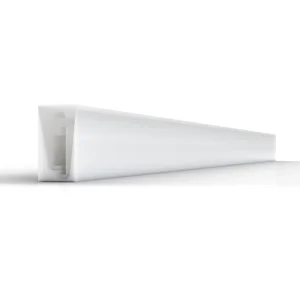

Recommended Channels

The following are recommended LED Channels for SL4 - Indoor Diffusion LED Ribbon.
