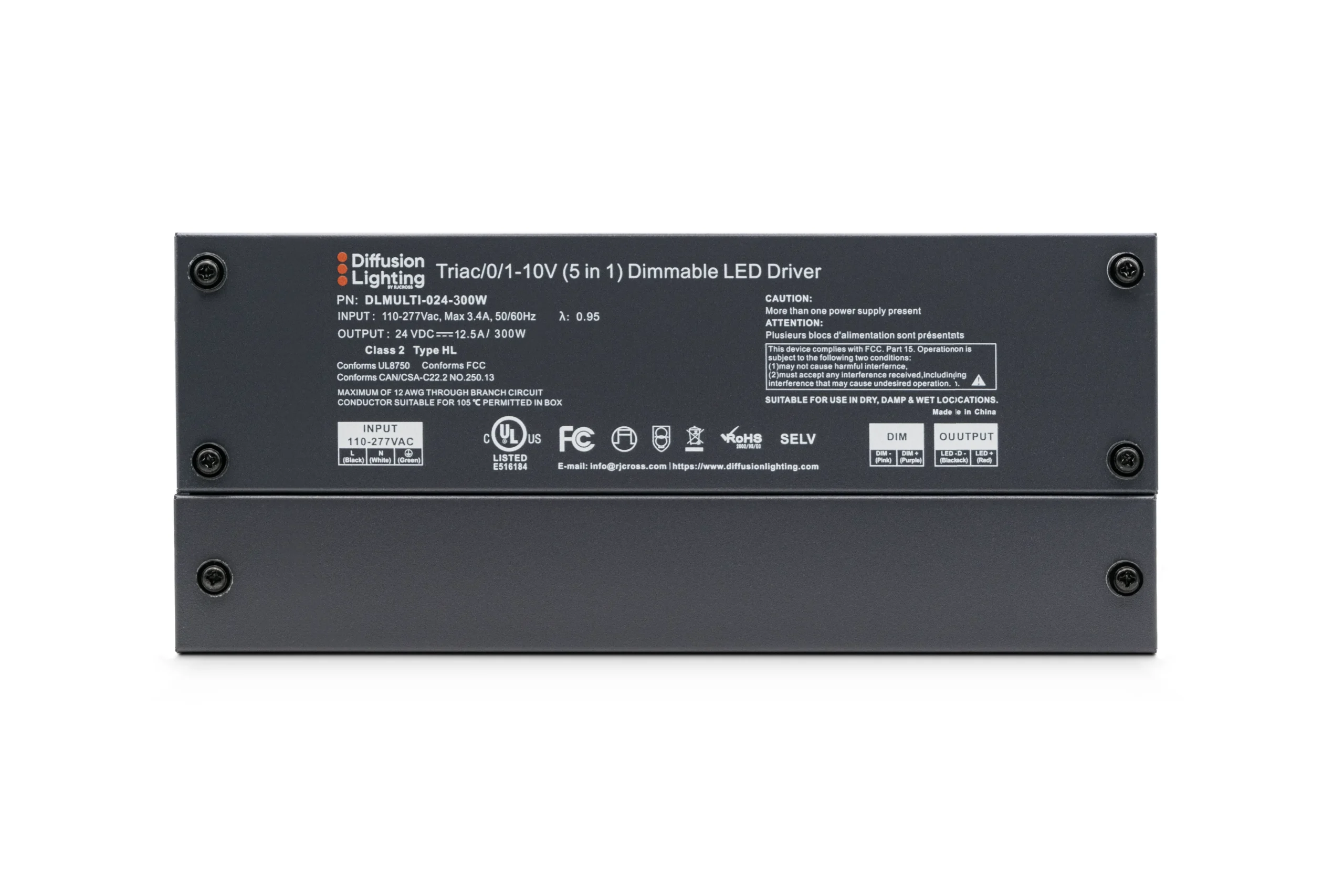

DLMULTI-024-300W

Diffusion Driver

Diffusion DLMULTI-024-300W is a Dimmable LED Driver that works with  Forward / Reverse phase, ELV, Triac, or 0-10V Dimmers.

In Stock at Central Warehouse

Features

  • Protection from short circuits, over-current, and over-voltage
  • Internal self-reset mini breakers
  • Compatible with virtually every style dimmer
  • Flicker-free: 20,000 Hz
  • Indoor/Outdoor
  • High Efficiency
  • Working Temp: -40°C to 80°C
  • Wet location rated

Technical Specification

Dimensions 6333674 cm
Wattage

300W

Output Current

12.5 A

Output Voltage

24V DC

Input Voltage

100-277 VAC

Dimmable

Yes

Dimming Range

0-100%

Environment

Indoor and Outdoor

IP Rating

NEMA 4X

Operating Temp

-40°C to 80°C

Certificate

cUL Listed | E486690

Warranty

5 Year Warranty

Downloads

Specification Sheet
Installation Sheet

Diagrams

Dimensions

DLMULTI-024-300W Dimensions
Length: 280 mm (11.02 in)
Width: 105 mm (4.13 in)
Height: 45 mm (1.75 in)
Knock outs Dimensions
Sides:
6.00.85 in (21 mm)
Back:
2 x 0.85 in (21 mm)

Accessories

DLMULTI-024-300W Wattage Calculator
