Diffusion SLC-003R - In-floor, anodized aluminum channel with endcaps and 3mm thick opal polycarbonate lens.
SLC-003R LED Extrusion - Recessed anodized aluminum with mounting clips, endcaps, and opal polycarbonate lens, by Diffusion. Black
SLC-003R LED Extrusion - Recessed anodized aluminum with mounting clips, endcaps, and opal polycarbonate lens, by Diffusion. White

SLC-003R

Diffusion LED Channel

Diffusion SLC-003R is a Recessed, anodized aluminum LED extrusion that comes complete with three clear mounting clips, two endcaps, and an opal polycarbonate lens.
Note: Extra clips and endcaps are available by request

In stock

Applications

  • Shelving
  • Wall surface
  • Kitchen cabinets
  • Furniture
  • Recess
Downloads
Diagrams

Technical Specification

Dimensions 6333674 cm
Channel

Anodized Aluminum Extrusion
Lens

Opal Polycarbonate, Heat Resistant, UV stable, and Shatter Resistant
Length

8 ft (2.44 meters)
Color

Silver (Standard), Black, White, Custom RAL, Optional Antimicrobial Coating
Lens Color Options

White Lens, Black Lens
Mounting Clip Material

Plastic
Mounting

Recessed, Surface
Environment

Indoor and Outdoor
Warranty

5 Year Warranty

Downloads

Specification Sheet
SLC-003R Spec Sheet
Installation Sheet
SLC-003R Installation Sheet
CAD File
SLC-003R CAD

Diagrams

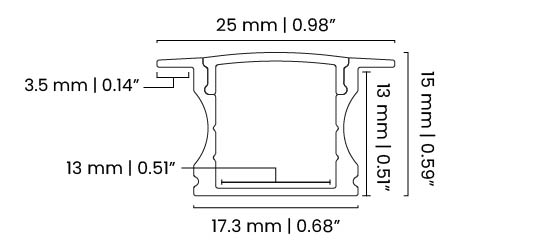

SLC-003R Diagram
A diagram of the Diffusion Lighting LED Channel SLC-003R

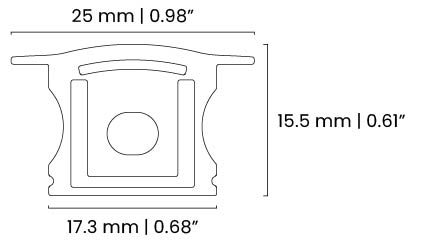

End Cap Diagram
A diagram of the Diffusion Lighting LED Channel SLC-003R End Cap

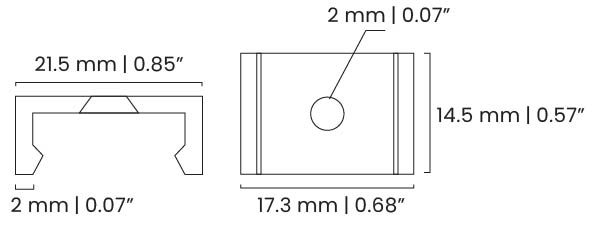

Mounting Clips Diagram
A diagram of the Diffusion Lighting LED Channel SLC-003R Mounting Clips

Dimensions

SLC-003R Dimensions
Width: 25 mm (0.98 in)
Height: 15.5 mm (0.61 in)
Interior : 17.3 mm (0.68 in)

Accessories

SLC-003R Wattage Calculator

Compatible Products

The following are recommended compatible products for the SLC-003R Diffusion LED Channel.
