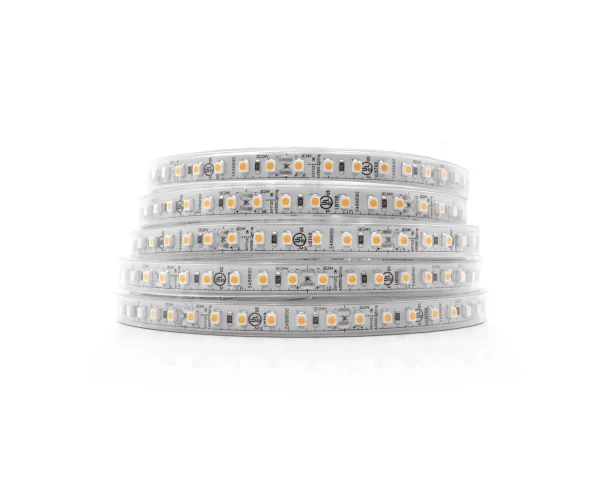

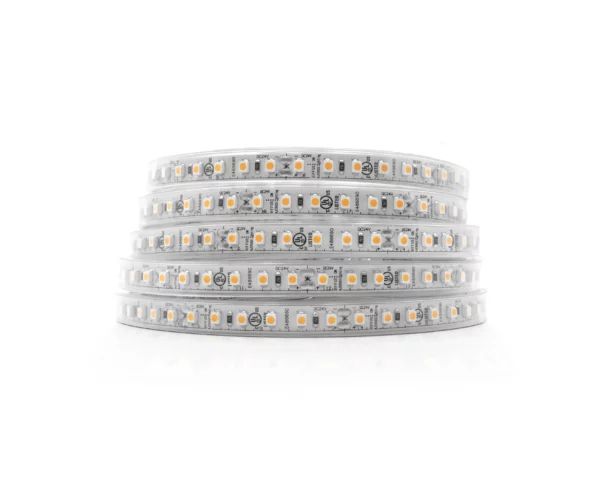

A photo of SL3-Outdoor LED strip lighting by Diffusion Lighting

SL3-Outdoor

Diffusion LED Ribbon

Diffusion SL3-Outdoor is a flexible 10mm wide linear LED strip. It is available in 16′ and 32′ rolls that can be cut every 6 LEDs (50 mm or 2").

16 ft Roll
32 ft Roll
Custom Cut

In Stock at Central Warehouse

Features

10 W/m (3 W/ft)
LED Watts
120/m (36/ft)
LED/Meter
91+ CRI
LED CRI
24V DC
Power Input
2200K
718 lm/m
215 lm/ft
2700K
788 lm/m
236 lm/ft
3000K
832 lm/m
249 lm/ft
3400K
876 lm/m
263 lm/ft
4100K
908 lm/m
279 lm/ft
5000K
1034 lm/m
318 lm/ft
Custom Kelvins available upon request
Downloads
Diagrams
Dimensions
Tools

Technical Specification

Dimensions 6333674 cm
Wattage

10 W/m (3 W/ft)
Voltage

24 Volts DC
Roll Length

16 ft, 32 ft, Custom Cut
IP Rating

IP 67
Dimmable

Yes
Lamp Life

50,000 hrs LM-80
Cutting Point

2 in
LED Ribbon Width

10 mm (0.39")
LED/Meter

120/m (36/ft)
CRI

91 + CRI
Mounting

Surface
Operating Temp

-40°C to 120°C
Environment

Sauna Approved
Certificate

cUL Listed | E486690
Warranty

5 Year Warranty

Downloads

Specification Sheet
SL3-Outdoor Spec Sheet

Diagrams

SL3-Outdoor Diagram
A diagram of SL3-Outdoor LED Strip Lighting by Diffusion Lighting

Dimensions

SL3-Outdoor Dimensions
Length: 50 mm (1.96 in)
Width: 10 mm (0.39 in)
Height: 3 mm (0.12 in)

Accessories

SL3-Outdoor Wattage Calculator
