SL1-Outdoor

Diffusion LED Strip

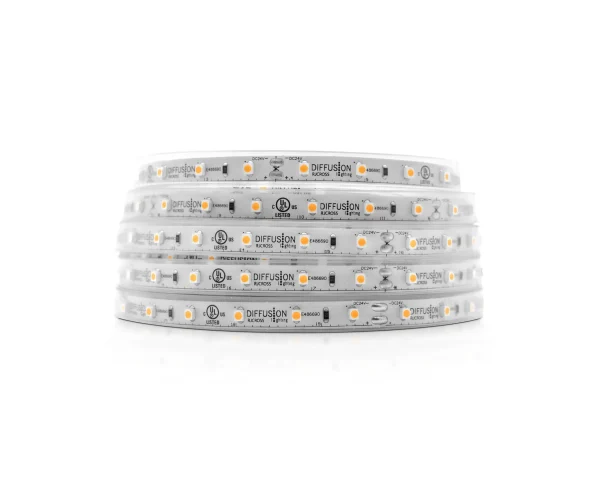

Diffusion SL1-Outdoor is a flexible 10 mm wide linear LED strip. It is available in 16' and 100' rolls that can be cut every 6 LEDs (100 mm or 4")

16 FT ROLL

32 FT ROLL

Custom Cut

In Stock at Central Warehouse

Features

50K HRS
Lamp Life
24V DC
Power Input
91+ CRI
LED CRI
4.8 W/m
LED Watts
2700K
394 lm/m
120 lm/ft
3000K
416 lm/m
126 lm/ft
3400K
438 lm/m
132 lm/ft
4100K
460 lm/m
140 lm/ft
Custom Kelvins available upon request
Technical Specification
Downloads
Diagrams
Tools

Technical Specification

Dimensions 6333674 cm
Wattage

4.8 W/m (1.5W/ft)

Voltage

24 Volts DC

Roll Length

16 ft, 32 ft, Custom Cut

IP Rating

IP 67

Dimmable

Yes

Lamp Life

50,000 hrs LM-80

Cutting Point

4 in

CRI

91 + CRI

Operating Temp

-40°C to 120°C

Warranty

5 Year Warranty

Downloads

Specification Sheet
Installation Sheet

Diagrams

LED Ribbon Diagram

Recommended Channels

The following are recommended LED Channels for SL1-Outdoor Diffusion LED Ribbon.
