SL5-RGB(W) - Outdoor

Diffusion LED Strip

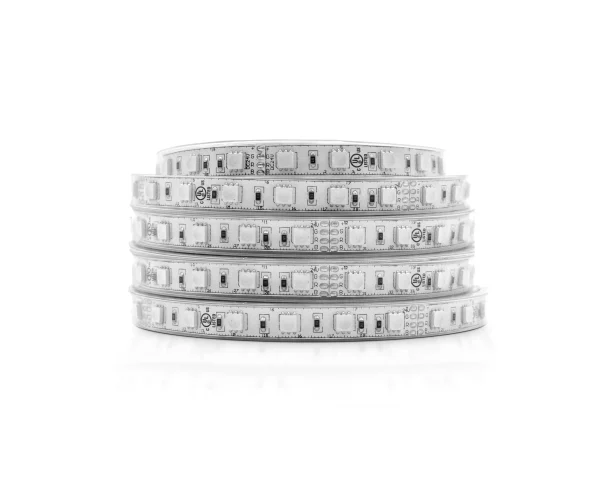

Diffusion SL5-RGB-Outdoor is a flexible 12 mm wide linear LED strip. Diffusion SL5-RGBW-Outdoor is a flexible 14 mm wide linear LED strip. Both are available in 16' and 32' rolls that can be cut every 6 LEDs (100 mm or 4").

16 FT ROLL

32 FT ROLL

Custom Cut

In Stock at Central Warehouse

Features

50K HRS
Lamp Life
24V DC
Power Input
91+ CRI
LED CRI
14.4 W/m
LED Watts
RGB
591  lm/m
180  lm/ft
W(2700K)
400  lm/m
122  lm/ft
Custom Kelvins available upon request
Technical Specification
Downloads
Diagrams
Tools

Technical Specification

Wattage

RGB LED : 14.4 W/m (4.32 W/ft) | RGBW LED : 19.2 W/m (6 W/ft)

Voltage

24 Volts DC

Roll Length

16 ft, 32 ft, Custom Cut

IP Rating

IP 67

Dimmable

Yes

Lamp Life

50,000 hrs LM-80

Cutting Point

4 in

CRI

91 + CRI

Operating Temp

-40°C to 120°C

Warranty

5 Year Warranty

Downloads

Specification Sheet
Installation Sheet

Diagrams

SL5-RGBW-Outdoor
SL5-RGB-Outdoor

Recommended Channels

The following are recommended LED Channels for SL5-RGB(W) - Outdoor Diffusion LED Ribbon.
Note: SLC-034R can be mounted only on the side of the inside of the channel.
