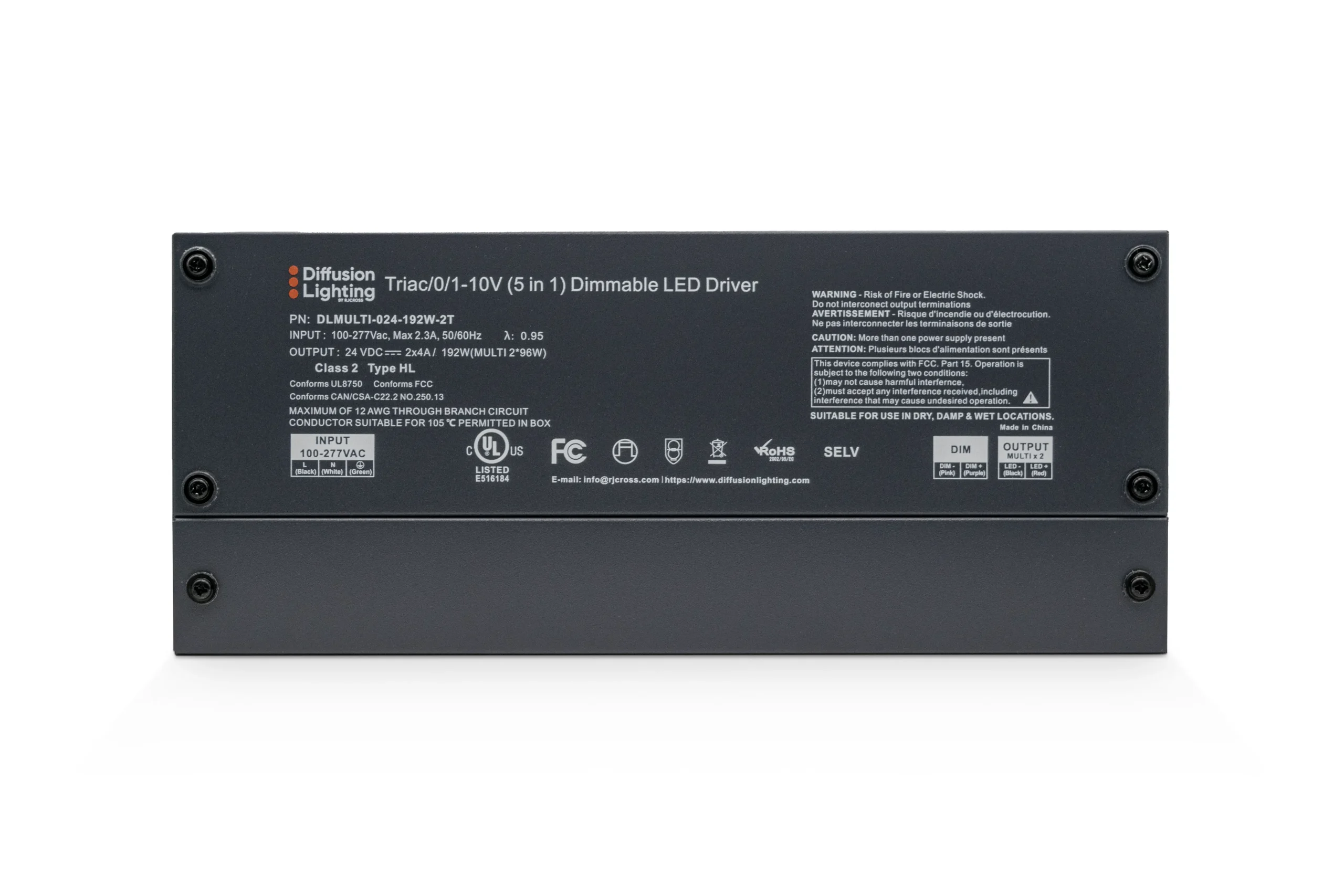

A photo of the Diffusion LED Driver DLMULTI-024-192W-2T for LED Ribbon provand a constant powered supply to achieve superior lighting

DLMULTI-024-192W-2T

Diffusion Driver

Diffusion DLMULTI-024-192W-2T is a two-tap Dimmable LED Driver that works with  Forward / Reverse phase, ELV, Triac, or 0-10V Dimmers.

Features

  • Protection from short circuits, over-current, and over-voltage
  • Internal self-reset mini breakers
  • Compatible with virtually every style dimmer
  • Flicker-free: 20,000 Hz
  • Indoor/Outdoor
  • High Efficiency
  • Working Temp: -40°C to 80°C
  • Wet location rated
Downloads
Dimensions

Technical Specification

Dimensions 6333674 cm
Input Voltage

100-277 VAC
Output Voltage

24V DC
Output Current

2x 4.0 A
Dimmable

Yes
Dimming Range

0-100%
Wattage

192W (2*96W)
Class

Class 2
Environment

Indoor and Outdoor
IP Rating

NEMA 4X
Operating Temp

-40°C to 80°C
Certificate

cUL Listed | E486690
Warranty

5 Year Warranty

Downloads

Installation Sheet
DLMULTI Installation Sheet

Diagrams

Dimensions

DLMULTI-024-192W-2T Dimensions
Length: 280 mm (11.02 in)
Width: 105 mm (4.13 in)
Height: 45 mm (1.75 in)
Knock outs Dimensions
Sides:
6 x 0.85 in (21 mm)
Back:
2 x 0.85 in (21 mm)
