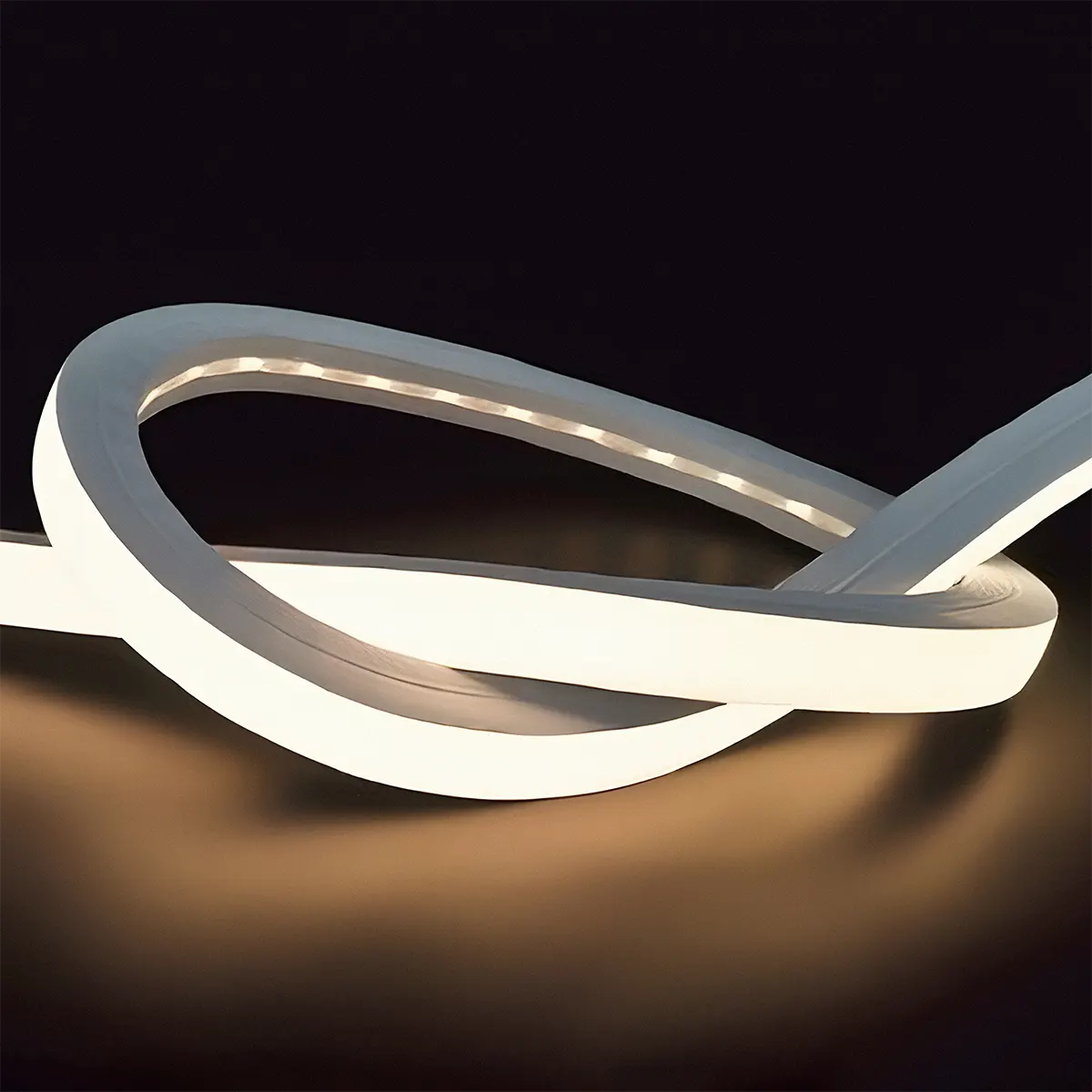

The Diffusion SL3D-Bend is a fully 360-degree bendable lighting system designed for curved applications. It includes mounting hardware and offers resistance to saline, acids, alkalis, corrosive gases, and UV rays. Rated for outdoor applications with an IP68 rating, it is submersible up to 9 meters.
In Stock at Central Warehouse
| Wattage | 15.36 W/m (4.7 W/ft) |
|---|---|
| Input Voltage | 24V DC |
| CRI | 91 + CRI |
| Lamp Life | 50,000 hrs LM-80 |
| Dimmable | Yes |
| Dimming Range | 0-100% |
| Roll Length | Custom Cut to Order |
| Controls | Forward/Reverse Phase, ELV, TRIAC, 0-10V, DMX |
| Connections | Copper Conductors, 20 AWG |
| Mounting Clip Material | Aluminum |
| Channel Material | Flexible Opal Channel |
| Top Bend Diameter | Ø200 mm (7.87 in) |
| Side Bend Diameter | Ø300 mm (11.81 in) |
| Max Run Length | 20 m (65 ft) |
| Environment | Indoor and Outdoor |
| IP Rating | IP68 |
| Operating Temp | -20°C to 120°C |
| Impact Protection | IK10 Rated |
| UV Resistance | UV Stable |
| Certificate | cUL Listed | E486690 |
| Warranty | 5 Year Warranty |
| Applications | Gardens, Walkways, Pools, Saunas, Fountains and Water Features |
