SL1-Indoor

Diffusion LED Strip

Diffusion SL1-Indoor is a flexible 8mm wide linear LED strip. It is available in 16′ and 100′ rolls that can be cut every 6 LEDs (100mm or 4")

16 FT ROLL

100 FT ROLL

Custom Cut

In Stock at Central Warehouse

Features

50K HRS
Lamp Life
24V DC
Power Input
91+ CRI
LED CRI
4.8 W/m
LED Watts
2700K
394 lm/m
120 lm/ft
3000K
416 lm/m
126 lm/ft
3400K
438 lm/m
132 lm/ft
4100K
460 lm/m
140 lm/ft
Custom Kelvins available upon request
Technical Specification
Downloads
Diagrams
Tools

Technical Specification

Dimensions 6333674 cm
Wattage

4.8 W/m (1.5W/ft)

Voltage

24 Volts DC

Roll Length

100 ft, 16 ft, Custom Cut

Lamp Life

50,000 hrs LM-80

LED/Meter

60/m (18/ft)

Cutting Point

4 in

CRI

91 + CRI

Adhesive

3M Double Coated

Operating Temp

-40°C to 120°C

Warranty

5 Year Warranty

Downloads

Specification Sheet
Installation Sheet

Diagrams

LED Ribbon Diagram

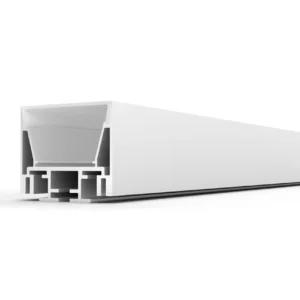

Recommended Channels

The following are recommended LED Channels for SL1-Indoor Diffusion LED Ribbon.
