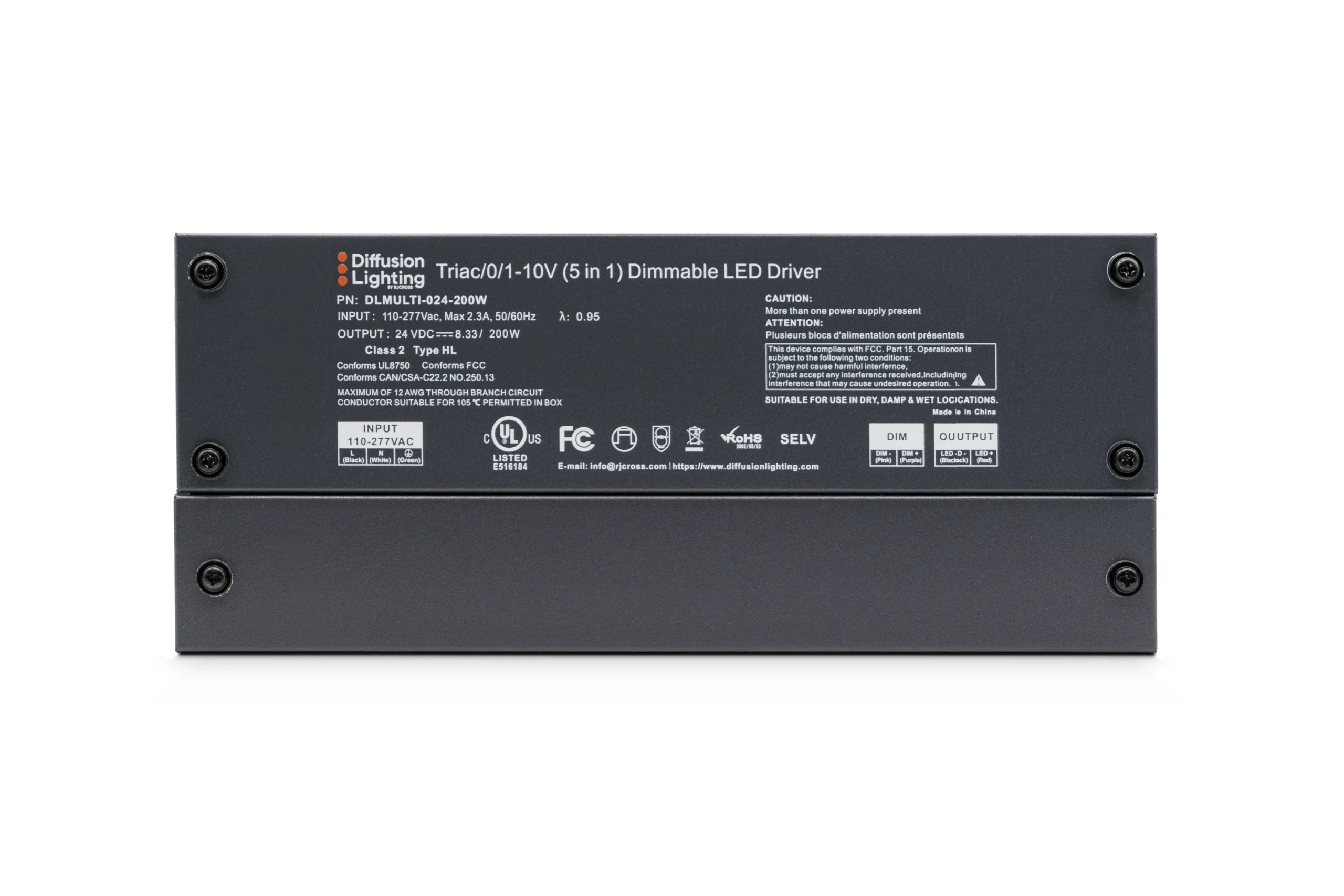

DLMULTI-024-200W

Diffusion LED Driver

Diffusion DLMULTI-024-200W is a Dimmable LED Driver that works with  Forward / Reverse phase, ELV, Triac, or 0-10V Dimmers.

In Stock at Central Warehouse

Features

  • Protection from short circuits, over current, and over voltage
  • Internal self-reset mini breakers
  • Compatible with virtually every style dimmer
  • Flicker-free: 20,000 Hz
  • Indoor/Outdoor
  • High Efficiency
  • Working Temp: -40° C to +85° C
  • Wet location rated

Technical Specification

Input Voltage

100-277 VAC

Output Voltage

24V DC

Output Current

8.33 A

Dimmable

Yes

Dimming Range

0-100%

Wattage

200W

Environment

Indoor and Outdoor

IP Rating

IP 65

Operating Temp

-40°F to 185°F

Features

  • Protection from short circuits, over current, and over voltage
  • Internal self-reset mini breakers
  • Compatible with virtually every style dimmer
  • Flicker-free ~ 20,000 Hz
  • Indoor/Outdoor
  • High Efficiency
  • Working Temp : -40 ~ +85° C
  • Wet location rated

Diagrams

Connector

Driver, power, Power supplies, power supply, transformer, led transformer, plugin, plug in, plug in driver, dimmable, led strip driver, led power, led lighting plug in, ballast, electronical ballast, led ribbon, manufacture, lighting manufacture, led manufacture, watt, volte, voltage, dimmer, indoor, outdoor, enclosure, load capabilities, ip40, UL Certification, ETL Certification, etl listed, cul listed, output voltage, efficiency, load regulation, ripple, mini breakers, cfl/led, quality control, warranty, 5 years warranty, canada, british columbia, led, led ribbon, led strip, ribbon, strip, tape led strips, strips, led lighting, lighting, 3m, adhesive tape, dimmable, dim, long life, lamp, lamp life, led/meter, led/ft, power, power input, cri, >91, >95, lumens, kelvin, voltage, length, bin selection, macadam ellipse, 2 step macadam ellipse, quality control, lm/m, lm/ft, cul certificate, cul listed, warranty, 5 years warranty, power feed, feed, IP67, LM80, NEC code, max run length, 32 feet, flexible, linear, cut, custom cut, custom, custom color, custom colour, low voltage luminaire, low, luminaire, indoor, outdoor, warm white, warm, white, cool white, cool, class 2, color, colour warm white led, cool white led, canada, british columbia,

Comes with two Connectors
Only takes up to 14/2 loomex or 14/3 sjoow*

Dimensions

6.0" L x 3.6" W x 1.0" H
150mm L x 93mm W x 25mm H

KO (I.D.) :
6 x 0.5" (Sides) *Standard 1/2" connectors won't fit*
2 x 0.8" (Back)

Downlaods

DLMULTI-024 Spec Sheet

DLMULTI-024 Installation Sheet
