SL4-Outdoor

Diffusion LED Strip

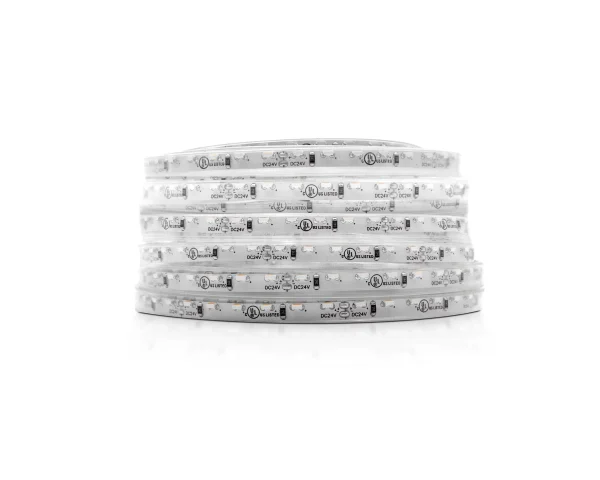

Diffusion SL4-Outdoor is a flexible 8mm wide side mount linear LED strip. It is available in 16′ and 32′ rolls that can be cut every 6 LEDs (50 mm or 2″).

Custom Cut Only

In Stock at Central Warehouse

Features

50K HRS
Lamp Life
24V DC
Power Input
10 W/m
LED Watts
IP67
IP RATING
30000K
728  lm/m
222  lm/ft
4000K
812  lm/m
247  lm/ft
Custom Kelvins available upon request
Technical Specification
Downloads
Diagrams
Tools

Technical Specification

Dimensions 6333674 cm
Wattage

10 W/m (3 W/ft)

Voltage

24 Volts DC

Roll Length

Custom Cut Only

IP Rating

IP 67

Dimmable

Yes

Lamp Life

50,000 hrs LM-80

Cutting Point

2 in

CRI

91 + CRI

Operating Temp

-40°C to 120°C

Warranty

5 Year Warranty

Downloads

Specification Sheet
Installation Sheet

Diagrams

LED Ribbon Diagram

Recommended Channels

The following are recommended LED Channels for SL4-Outdoor Diffusion LED Ribbon.
