DLMULTI-024-384W-4T

Diffusion

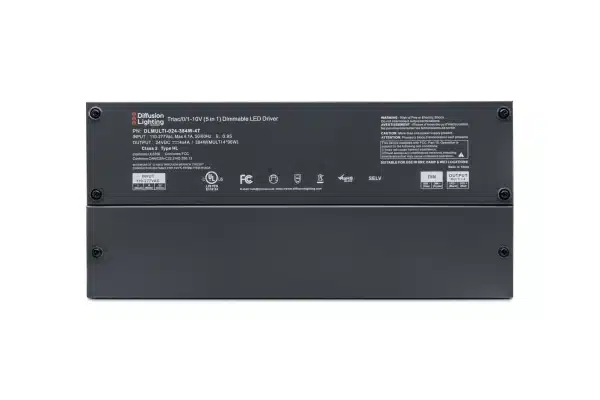

Diffusion DLMULTI-024-384W-4T is a Four-Tap Dimmable LED Driver that works with  Forward / Reverse phase, ELV, Triac, or 0-10V Dimmers.

Features

  • Protection from short circuits, over-current, and over-voltage
  • Internal self-reset mini breakers
  • Compatible with virtually every style dimmer
  • Flicker-free: 20,000 Hz
  • Indoor/Outdoor
  • High Efficiency
  • Working Temp: -40°C to 80°C
  • Wet location rated

Technical Specification

Wattage

384W (4X 96W)

Wattage Admin

384W

Output Current

4X 4.0 A

Output Voltage

24V DC

Input Voltage

100-277 VAC

Dimmable

Yes

Dimming Range

0-100%

Class

Class 2

Environment

Indoor and Outdoor

IP Rating

NEMA 4X

Operating Temp

-40°C to 80°C

Certificate

cUL Listed | E486690

Warranty

5 Year Warranty

Downloads

Specification Sheet

Diagrams

Dimensions

DLMULTI-024-384W-4T Dimensions
Length: 325 mm (12.79 in)
Width: 140 mm (5.51 in)
Height: 48 mm (1.89 in)
Knock outs Dimensions
Sides:
70.85 in (21 mm)
Back:
2 x 0.85 in (21 mm)
