SL3-Indoor

Diffusion LED Strip

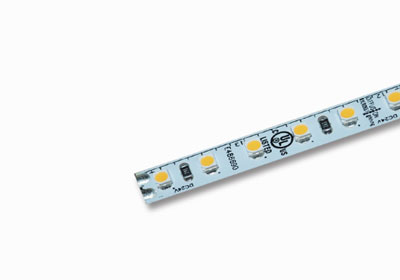

Diffusion SL3-Indoor is a flexible 8mm wide linear LED strip. It is available in 16' and 100' as well as custom cuts, which can be cut every 6 LEDs (50mm or 2").

16 FT ROLL

100 FT ROLL

Custom Cut

In Stock at Central Warehouse

Features

50K HRS
Lamp Life
24V DC
Power Input
91+ CRI
LED CRI
10 W/m
LED Watts
2700K
788 lm/m
236 lm/ft
3000K
832 lm/m
249 lm/ft
3400K
876 lm/m
263 lm/ft
4100K
908 lm/m
279 lm/ft
Custom Kelvins available upon request
Technical Specification
Downloads
Diagrams
Tools

Technical Specification

Dimensions 6333674 cm
Wattage

10 W/m (3 W/ft)
Voltage

24 Volts DC
Roll Length

100 ft, 16 ft, Custom Cut
Dimmable

Yes
Lamp Life

50,000 hrs LM-80
LED/Meter

120/m (36/ft)
Cutting Point

2 in
CRI

91 + CRI
IP Rating

IP 20
Adhesive

3M Double Coated
Mounting

Surface
Operating Temp

-40°C to 120°C
Certificate

cUL Listed | E486690
Warranty

5 Year Warranty

Downloads

Specification Sheet
SL3-Indoor Spec Sheet
Installation Sheet
Indoor LED Ribbon Installation Sheet

Diagrams

LED Ribbon Diagram

SL3-Indoor Wattage Calculator

Another Tab Contents

Recommended Channels

The following are recommended LED Channels for SL3-Indoor Diffusion LED Ribbon.
