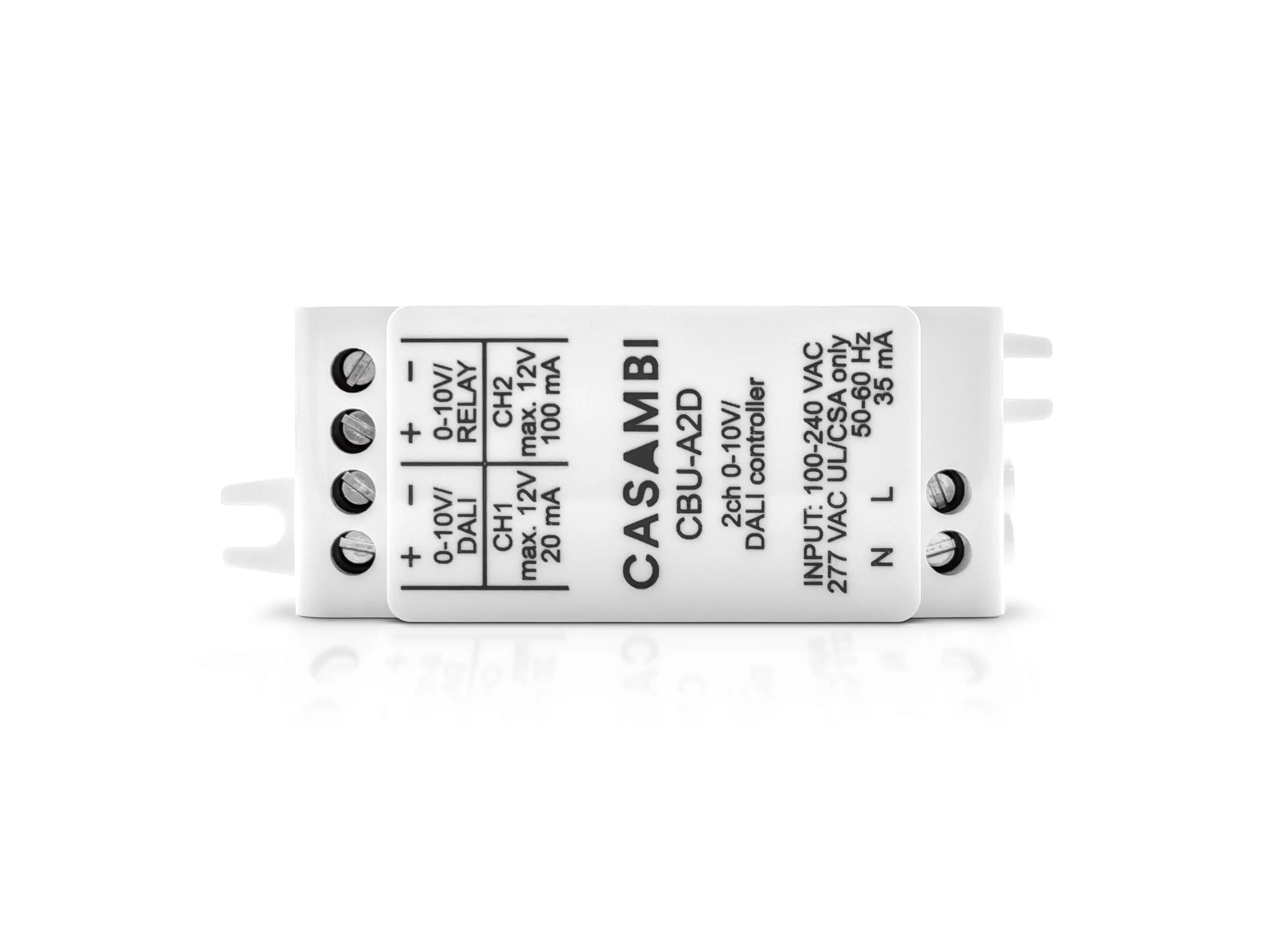

Casambi CBU-A2D

Diffusion

CBU-A2D is a Bluetooth-enabled 2-channel 0-10V/DALI controller with a universal 100-277 VAC input voltage range. It can control 1-2 0-10V LED drivers or a tunable white LED driver with two 0-10V control interfaces. It can also be configured as a DALI controller for connecting to DALI LED drivers or sensors for presence and daylight harvesting functions.

Features

  • Bluetooth connectivity for wireless control via the Casambi app
  • Universal input voltage range of 100-277 VAC
  • Supports 0-10V control for 1-2 LED drivers or tunable white LED driver
  • Configurable as a DALI controller for DALI LED drivers/sensors
  • Enables standalone DALI output, acting as both controller and power supply
  • Mesh network technology for extended range and network reliability
Downloads
Diagrams

Technical Specification

Dimensions 6333674 cm
Power Input

24V DC
Voltage range

100-240 VAC (CE/UL/CSA)
Frequency

50-60 Hz
Max. mains current

35 mA
No-load standby power

< 0,5 W
Output voltage, 0-10V

0-10 VDC, max. 7 mA (sinking)
Output voltage, DALI

12 VDC, max. 20 mA (sourcing)
Range

Indoors 30 m / Outdoors 50 m
Compatibility

Philips Hue, EnOcean, iBeacon, Apple iOS and Android devices
Wire range

16-20 AWG
Wireless Connection

Bluetooth 4.0
Operating Temp

-40°C to 120°C
Weight

40 g (1.39 oz)
IP Rating

IP 20
Environment

Indoor Only
Warranty

5 Year Warranty

Downloads

Specification Sheet
Casambi CBU-A2D Spec Sheet

Diagrams

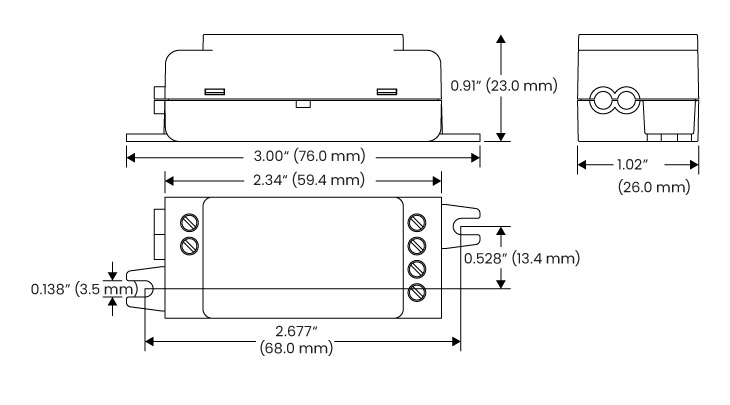

Casambi CBU-A2D Diagram
A diagram for the Casambi CBU-A2D

Dimensions
