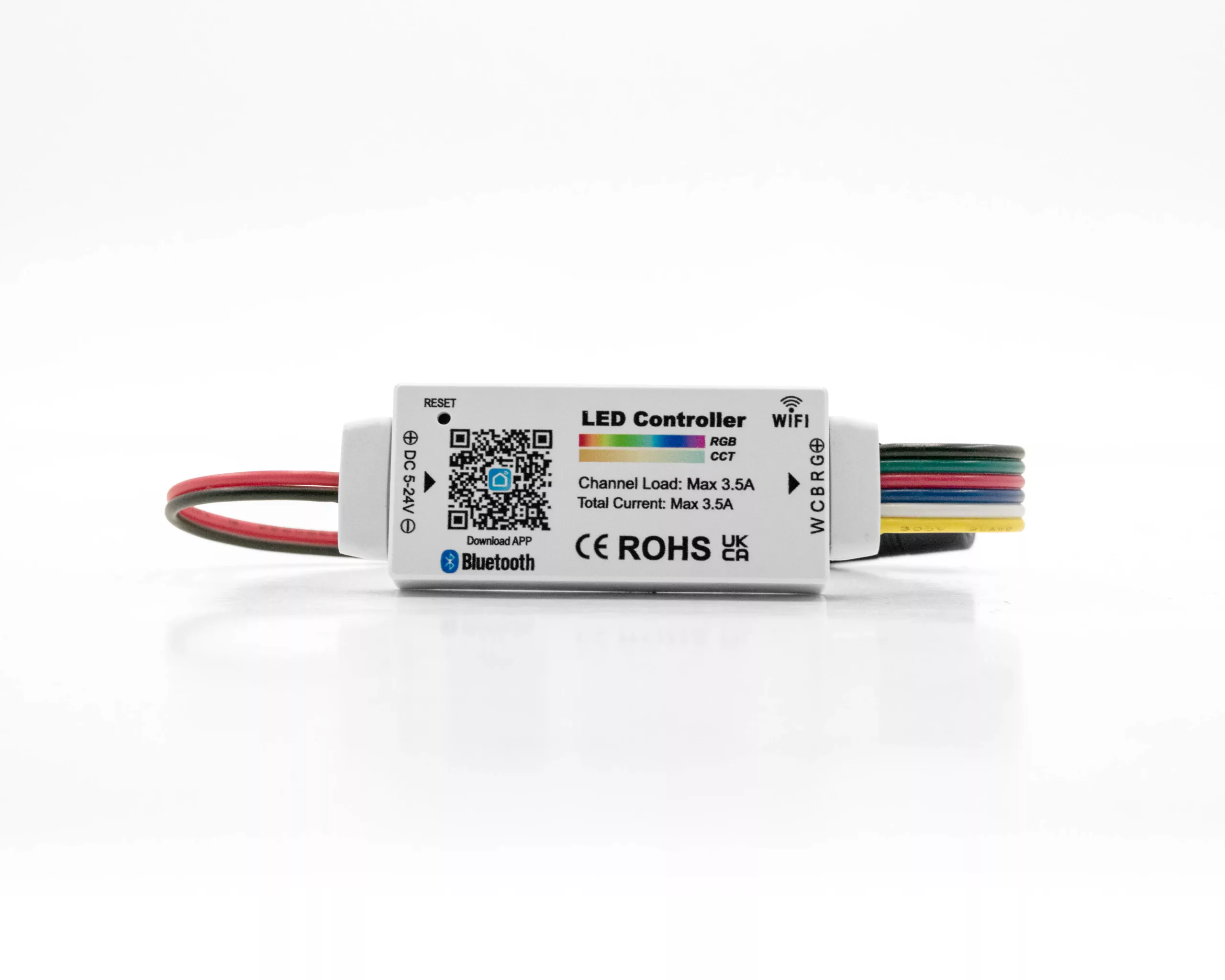

The WIFI Smart Controller is an Internet-enabled dimmer RGBW LED Ribbon. With 5 distinct channels, it covers MONO, CCT, RGB, RGBW, and RGBCCT applications. Control with Smart Life or Tuya App. Use standalone or in a smart network. Compatible with Amazon Alexa and Google Assistant for voice control.
| Power Input | 24V DC |
|---|---|
| Voltage Range | 5-24V DC |
| Max Power | 5V-17.5Watt, 12V-42Watt, 24V-84Watt |
| Output Channel | 1/2/3/4/5 Channel |
| Controlling Method | Internet remote control |
| Workable Device | Tuya, Smartlife, Amazon Echo, and Google Home |
| WIFI Frequency Band | 2.4GHz |
| PWM Frequency | 20KHz |
| Bluetooth Version | Bluetooth Low Energy 5.2 |
| Grey Level | 255 |
| Regular Feature | Memory function |
| Dimming Range | 10-100% |
| Workable Light Color | MONO/CCT/RGB/RGBW/RGBCCT |
| Intput Wire | Female DC Connector (5.5mm x 2.1mm) |
| Wire Gauge | 20AWG |
| Wire Length | 150mm |
| Environment | Indoor Only |
| IP Rating | IP 20 |
| Electrical Protection | Revert Protection, Over Load Protection |
| Warranty | 5 Year Warranty |
