SL7.5-DW-Indoor

Diffusion LED Driver

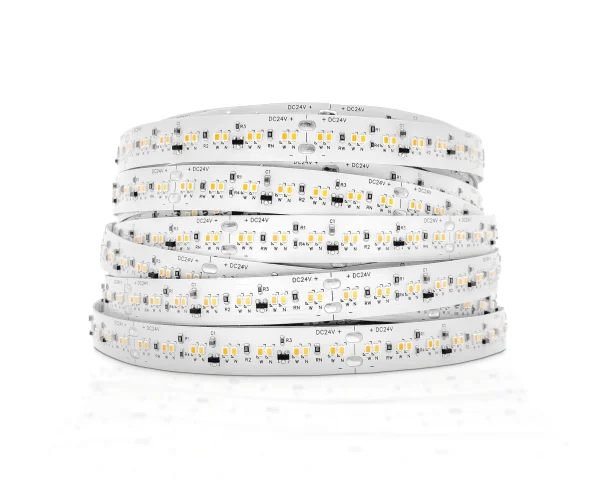

The Diffusion SL7.5-DW Indoor is a flexible 10 mm wide linear LED strip. It offers dim-to-warm functionality, allowing you to create the perfect warm glow for any ambiance. It can cut every 14 LED chips (63 mm or 2.5 in)

Custom Cut Only

In stock

Features

18 W/m (5 W/ft)
LED Watts
234/m (70/ft)
LED/Meter
95+ CRI
LED CRI
24V DC
Power Input
≤ 1770/M
Exact Kelvin Range Will Slightly Change
Custom Kelvins available upon request

Technical Specification

Dimensions 6333674 cm
Wattage

18 W/m (5 W/ft)

LED/Meter

234/m (70/ft)

Dimmable

Yes

Lamp Life

50,000 hrs LM-80

Cutting Point

2.5 in

LED Ribbon Width

10 mm (0.39")

CRI

90+ CRI

IP Rating

IP 20

Mounting

Surface

Operating Temp

-40°C to 120°C

Certificate

cUL Listed | E486690

Warranty

5 Year Warranty

Downloads

Specification Sheet

Diagrams

SL7.5-DW-Indoor Diagram

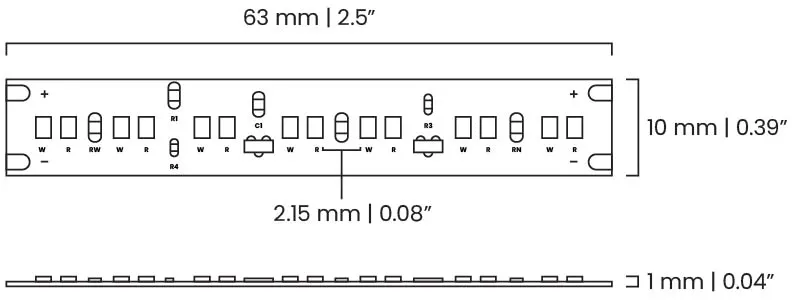

Dimensions

SL7.5-DW-Indoor Dimensions
Length: 63 mm (2.5 in)
Width: 10 mm (0.39 in)
Height: 1 mm (0.04 in)

Accessories

SL7.5-DW-Indoor Wattage Calculator

Compatible Products

The following are recommended compatible products for the SL7.5-DW-Indoor Diffusion LED Driver.
