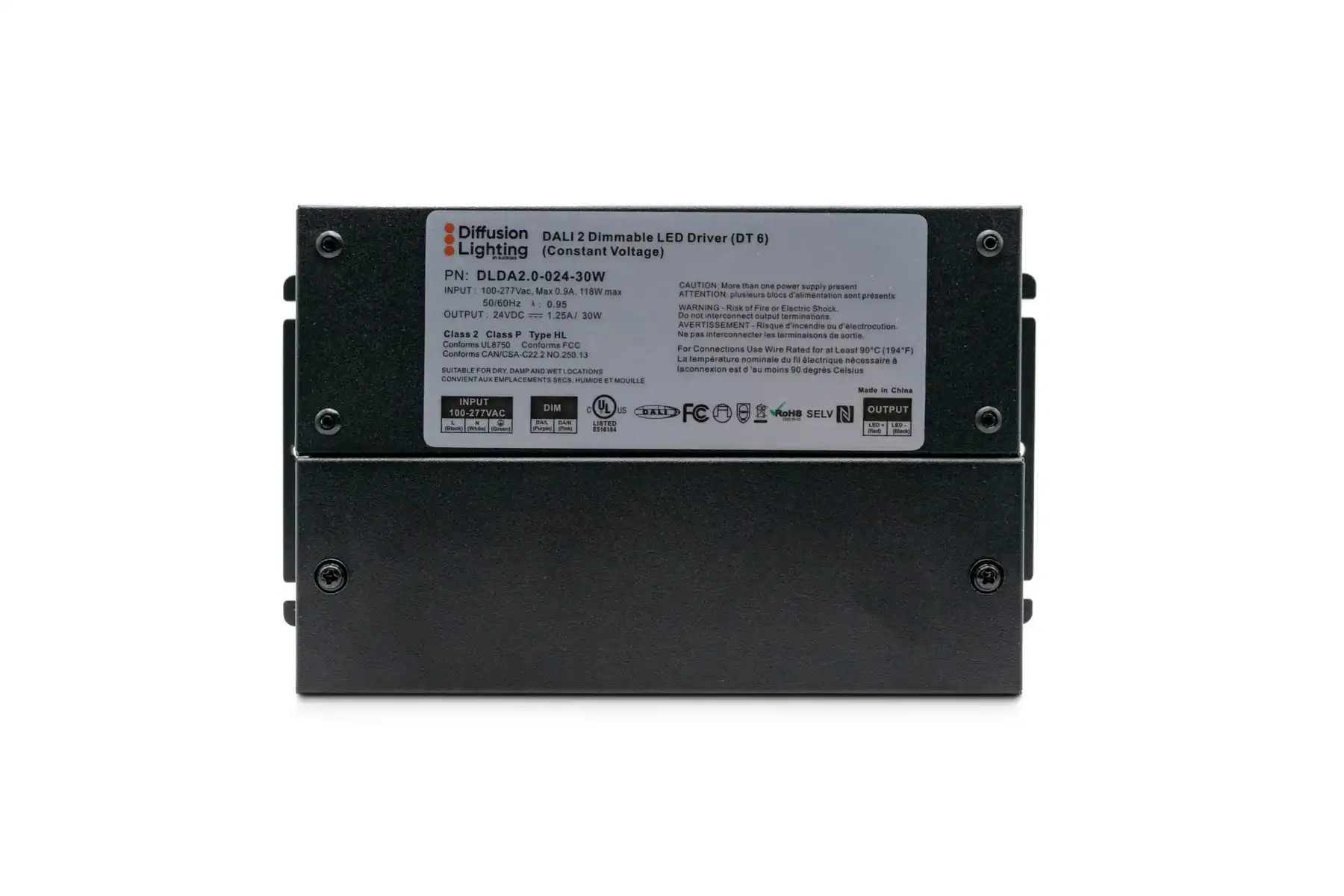

DLDA2.0-024-30W

Diffusion Driver

The Diffusion DLDA 2.0-024 Driver is a DALI 2.0 compliant, IP67 waterproof DALI dimming constant voltage electronic driver that is designed to be used indoors or outdoors. It includes a metal enclosure and is ideal for commercial and residential applications.

In Stock at Central Warehouse

Features

IP67 waterproof, designed for indoors and outdoors
Suitable for dry & damp locations
Metal enclosure included
Dali 2.0 Compliant

Technical Specification

Downloads

Diagrams

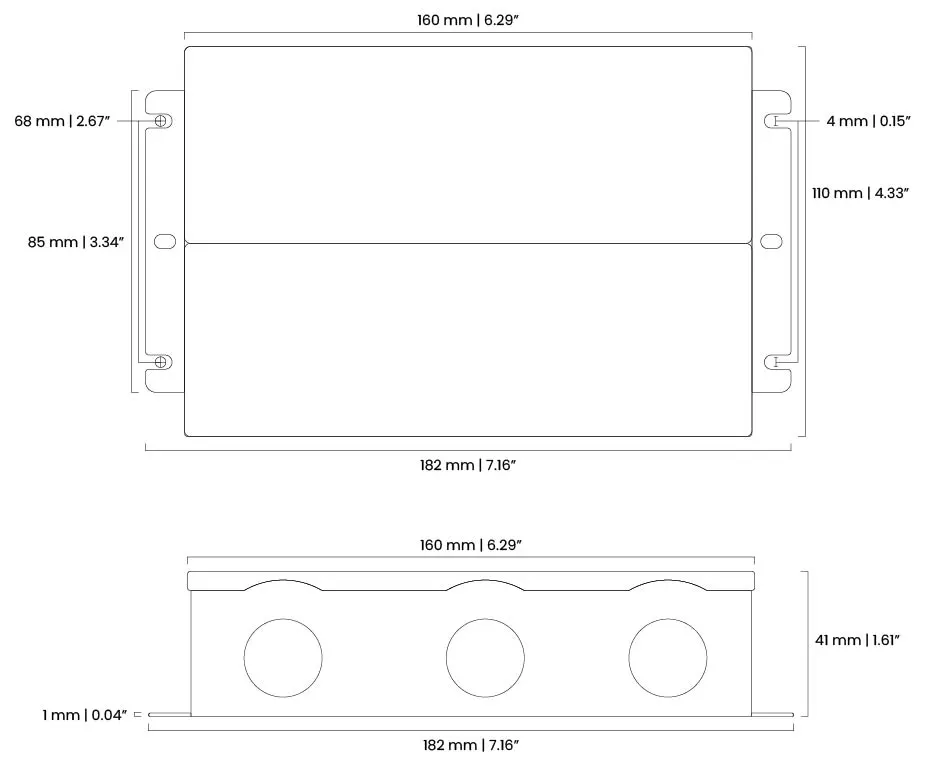

Dimensions

Technical Specification

Wattage	60W
Wattage Admin	60W
Input Voltage	100-277 VAC
Output Voltage	24V DC
Dimmable	Yes
Dimming Range	0-100%
Dimming Functions	DALI 2.0
Load Capabilities	80% - 90%
Load Regulation	0%
Ripple	0
Environment	Indoor and Outdoor
IP Rating	IP 67
Operating Temp	-40°C to 80°C
Certificate	cUL Listed \| E516184
Warranty	5 Year Warranty
