SL7.5-Outdoor
LED Strip

59
SL7.5-Outdoor​ led ribbon

Diffusion SL7.5-Outdoor

Diffusion  SL7.5-Outdoor is a flexible 12mm wide linear
LED strip. It is only available in custom cut
and can be cut every 7 LEDs (25mm or 1").

*Note :  Must order in custom cuts*

Features

  • Long life LED : 50,000 hrs
  • Dimmable with dimming power supply
  • 24" leads on both ends of each roll
  • IP 65

Specifications

  • LED : 14.4 W/m (4.5 W/ft)
  • Lamp Life : 50,000 hrs LM80
  • LED/Meter : 252/m (77/ft)
  • Power Input : 24 VDC
  • CRI > 95
  • R values all over 95

Lumens

2700K = 1418 lm/m (425 lm/ft)

3000K = 1512 lm/m (453 lm/ft)

3400K = 1620 lm/m (486 lm/ft)

4100K = 1742 lm/m (522 lm/ft)

*Custom Kelvins available upon request*

SL7.5-Outdoor​

Links

Outdoor LED Strip + Channel »

Downloads

Specification
Installation

Drawing

SL7.5-Outdoor​ led ribbon

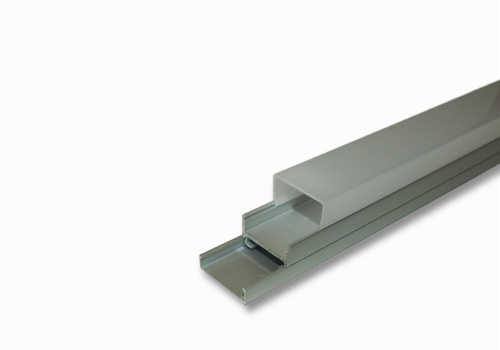

Recommended Channels

SL7.5-Outdoor Diffusion LED strip can be used in all the channels, except SLC-402S, SLC-037C, SLC-026F. Dots are NOT visible in the below channels.

SL7.5-Outdoor​
